#include <tag.h>
#include <dfa_matrix.h>
#include <alphabet.h>
#include <iostream.h>
#include <vcg.h>
ostream& operator <<(ostream &out, const struct default_tag &t)
{ return (out); }

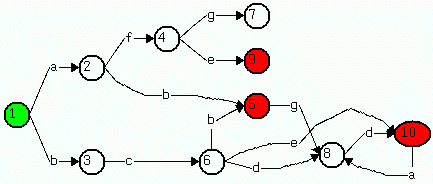

//code corresponding to the DFA
example
main()
{
//spécifie the type of the DFA
typedef DFA_matrix<Range_alphabet<char,'a','g'>,default_tag>
DFA_type;
//initialising the DFA,
empty
DFA_type dfa;
//creating and adding the states
DFA_type::State s[11];
for(int i=1;i<=10;i++)
s[i]=dfa.new_state();
//setting the transitions
dfa.set_trans(s[1],'a',s[2]);
dfa.set_trans(s[1],'b',s[3]);
dfa.set_trans(s[2],'f',s[4]);
dfa.set_trans(s[2],'b',s[5]);
dfa.set_trans(s[3],'c',s[6]);
dfa.set_trans(s[4],'g',s[7]);
dfa.set_trans(s[4],'e',s[9]);
dfa.set_trans(s[5],'g',s[8]);
dfa.set_trans(s[6],'b',s[5]);
dfa.set_trans(s[6],'d',s[8]);
dfa.set_trans(s[6],'e',s[10]);
dfa.set_trans(s[8],'d',s[10]);
dfa.set_trans(s[10],'a',s[8]);
//declaring initial and finals states...VERY IMPORTANT...
dfa.initial(s[1]);
dfa.final(s[5])=true;
dfa.final(s[9])=true;
dfa.final(s[10])=true;
//opening the stream
fstream file;
file.open("exemple.vcg",ios::out | ios::trunc);
//writing data
vcg(dfa,"EXEMPLE",file);
file.close();
}
|
