Suffix Table

Suffix Table

Let $x$ be a non-empty string. The suffix table of $x$ is defined on its positions $i$, $i=0, \dots, |x|-1$, by: $\tsuff[i]$ is the length of the longest suffix of $x$ ending at position $i$. Obviously $\tsuff[[x|-1]=|x|$.

Here is the suffix table of the word $\sa{abaababaaba}$:

$i$	0	1	2	3	4	5	6	7	8	9	10
$x[i]$	$\sa a$	$\sa b$	$\sa a$	$\sa a$	$\sa b$	$\sa a$	$\sa b$	$\sa a$	$\sa a$	$\sa b$	$\sa a$
$\tsuff[i]$	1	0	3	1	0	6	0	3	1	0	11

It can be computed in $O(|x|)$ time by the following algorithm.

    \begin{algorithmic}
    \STATE $suff[m-1]\leftarrow 1$
    \STATE $g\leftarrow m-1$
    \FOR{$i\leftarrow m-2$ \DOWNTO $0$}
        \IF{$i\gt g \mbox{ and } suff[i+m-1-f]\ne i-g$}
            \STATE $suff[i]\leftarrow \min\{suff[i+m-1-f],i-g\}$
        \ELSE
            \STATE $(f,g)\leftarrow (i,\max\{i,g\})$
            \WHILE{$g\ge 0$ and $x[g]=x[g+m-1-f]$}
                \STATE $g\leftarrow g-1$
            \ENDWHILE
            \STATE $suff[i]\leftarrow f-g$
        \ENDIF
    \ENDFOR
    \RETURN{$suff$}
    \end{algorithmic}

The key idea in Algorithm Suffixes that computes the table sequentially from right to left is to benefit from what has been computed before the current position.

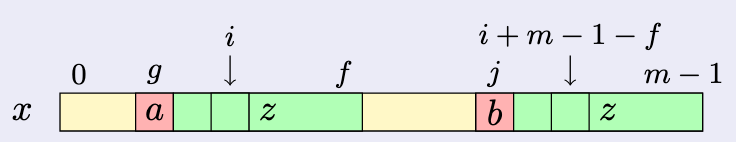

When $z=x[g+1\dd f]$ is a suffix of $x$ and position $i$ is between $g$ and $f$ (see picture), the first step for computing $\tsuff[i]$ is to check whether or not its value can be deduced from the work done on the suffix occurrence of $z$, that is, at position $i+m-1-f$ on $x$. This saves enough work to get a linear-time algorithm.
